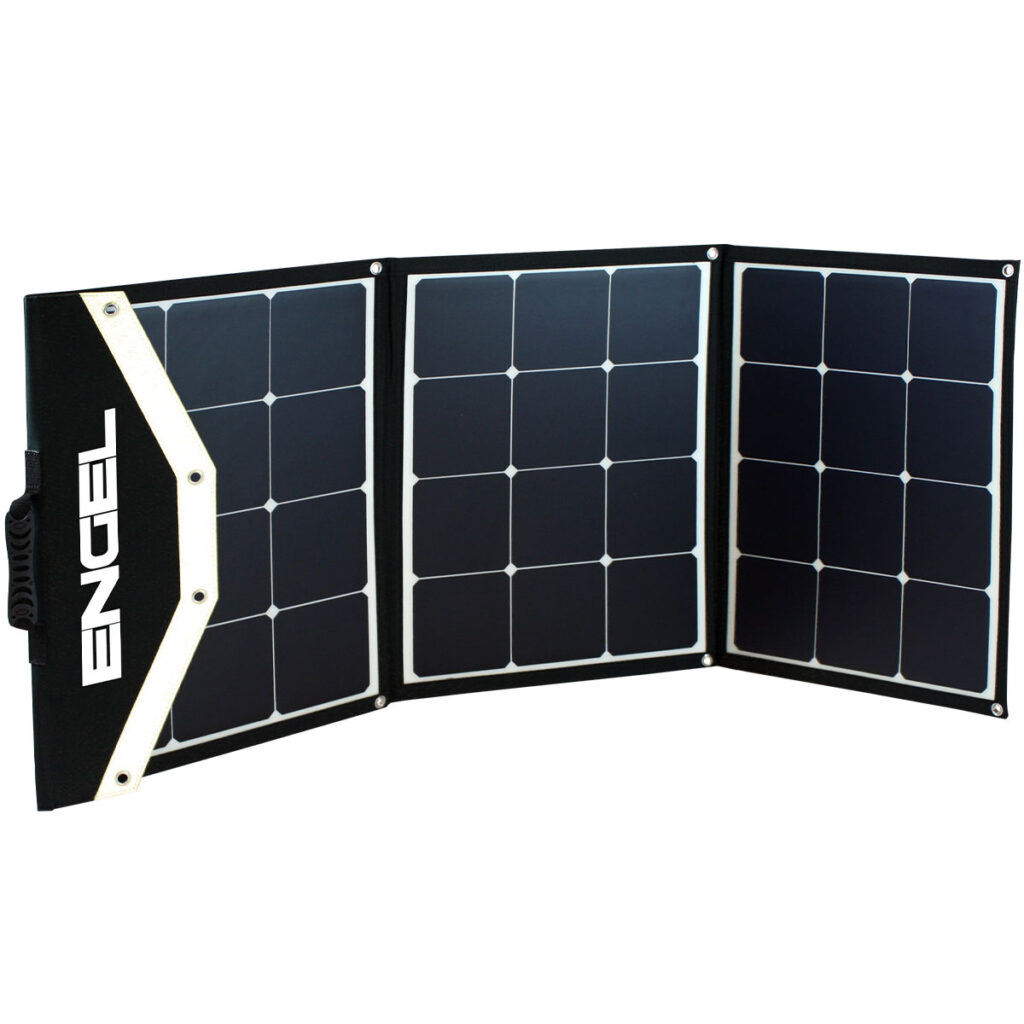

Portable 135W Solar Module

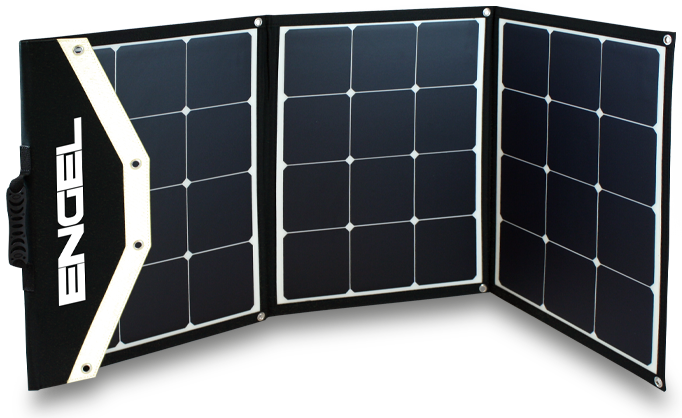

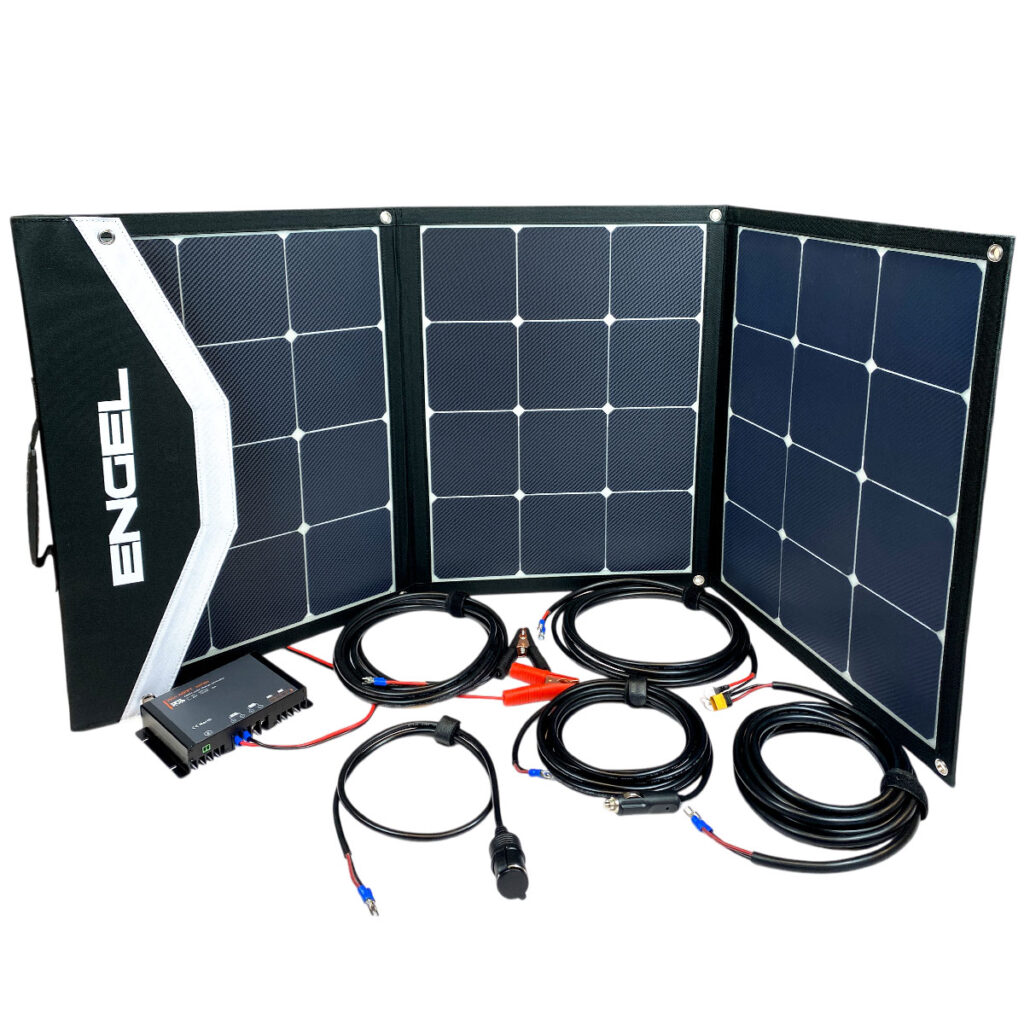

The ENGEL Solar 135W is one of the newest and one of the most powerful portable solar modules on the market. It folds to a third of its size and is therefore easy to transport. The high-quality MPPT charge controller can be connected quickly and easily and is also suitable for charging lithium batteries, such as the LiFeP04 Power Pack (page 24). Five different cables offer you flexible connection options. The advantages of this set come into their own when camping, on expeditions or on vehicles and boats without a fixed solar system.
Special features:
• 3×45 Watt solar power
• Light, handy, and foldable
• Extremely powerful
• Extensive connection options
• Perfect for on the go
Technical Specifications |
Item no. ENGSOLARSET3X45W |
|---|---|
Maximum power (Pmax): |
135 Watts |
Open circuit voltage (Voc): |
26.2 Volts |
Maximum voltage (Vmp): |
22.3 Volts |
Short circuit current (Isc): |
6.42 Amperes |
Maximum current (Imp): |
6.05 Amperes |
Cell efficiency: |
22.40 % |
Maximum system voltage: |
100 VDC (IEC) |
Temperature coefficient power: |
-0.43 % / °C |
Temperature coefficient voltage: |
-0.34 % / °C |
Temperature coefficient current: |
0.05 % / °C |
Power tolerance: |
±3 % |
Operating temperature: |
-10~60 °C |

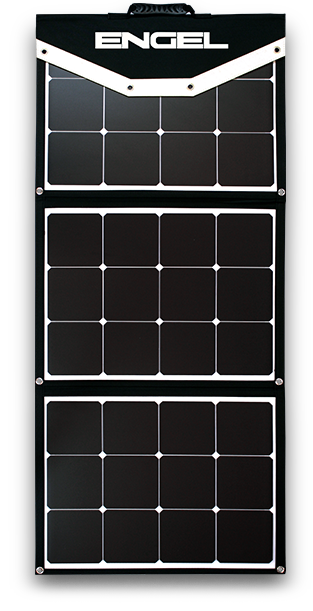

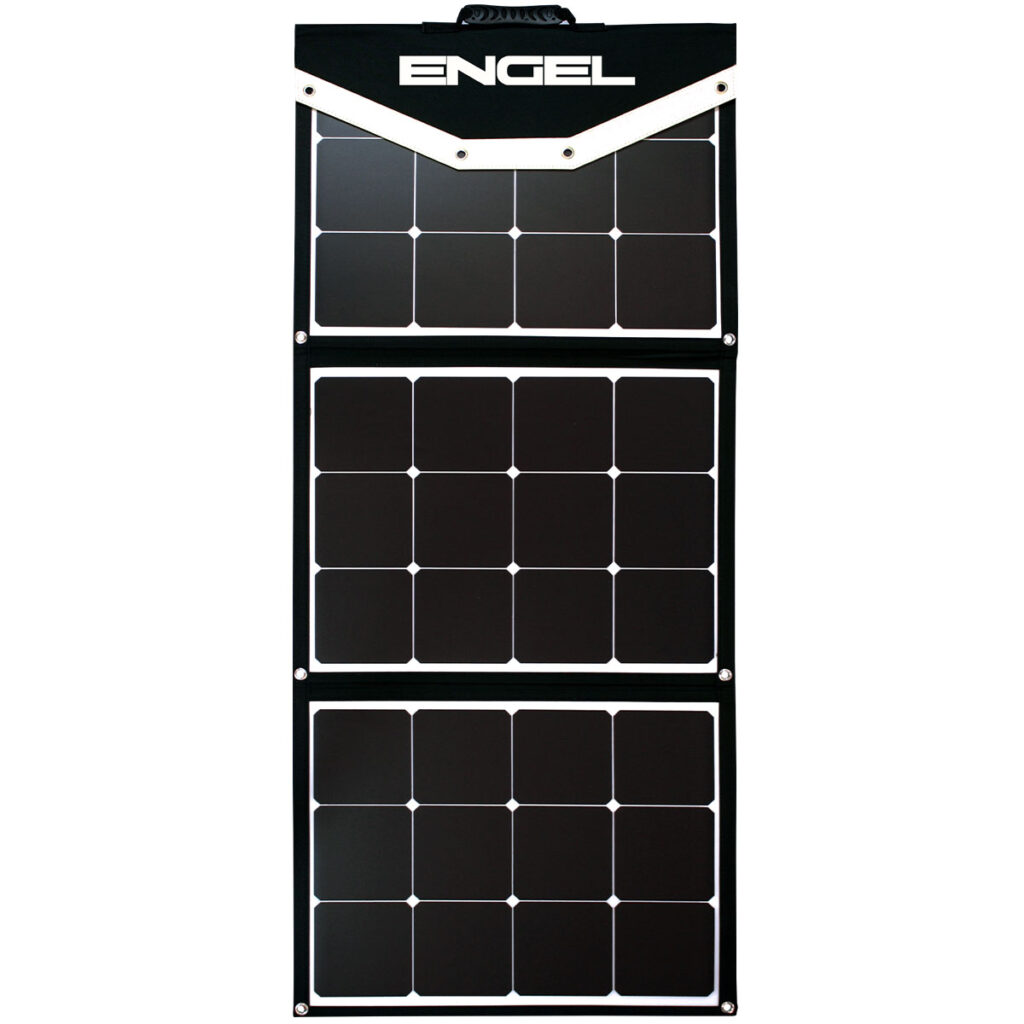

Dimensions unfolded: |
1525 x 560 x 4 mm |

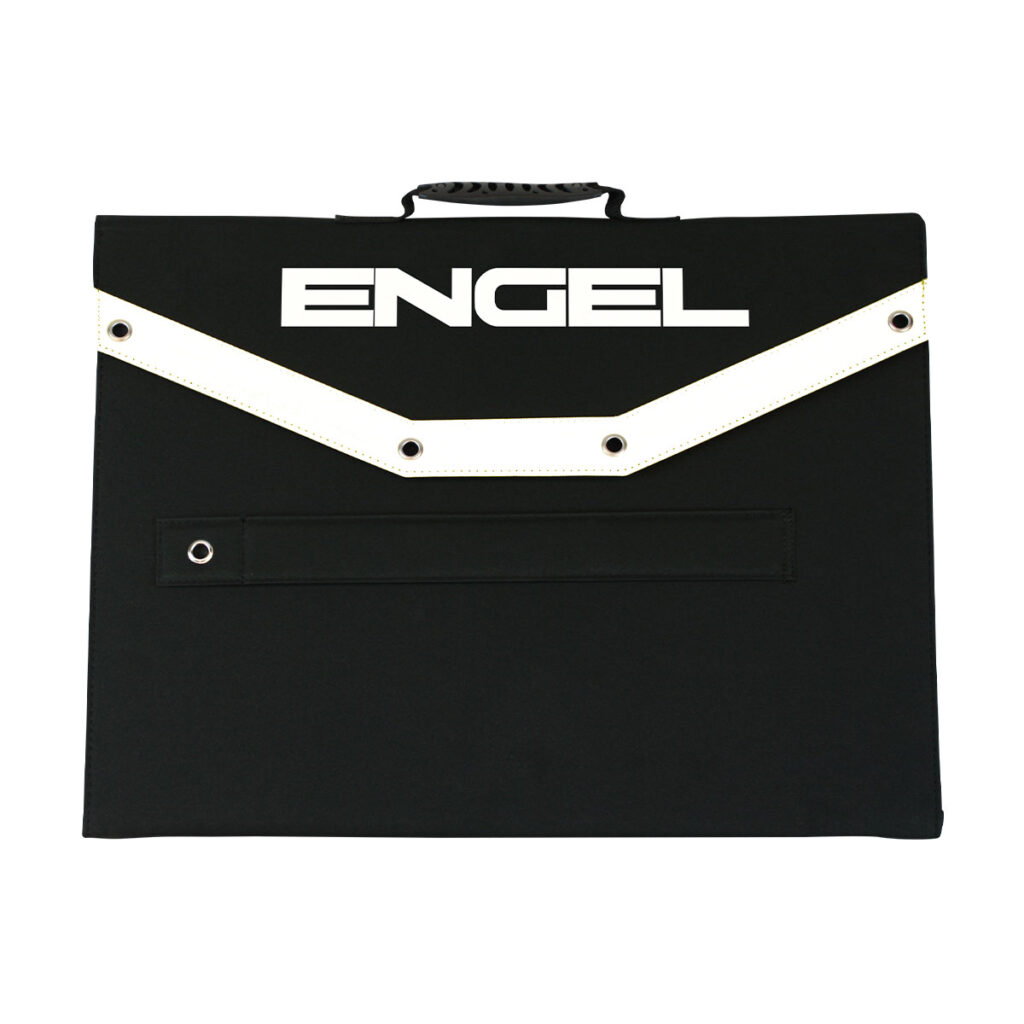

Dimensions folded: |
560 x 440 x 20 mm |
Weight: |
2.7 kg |
Waterproof junction box: |
IP67 |

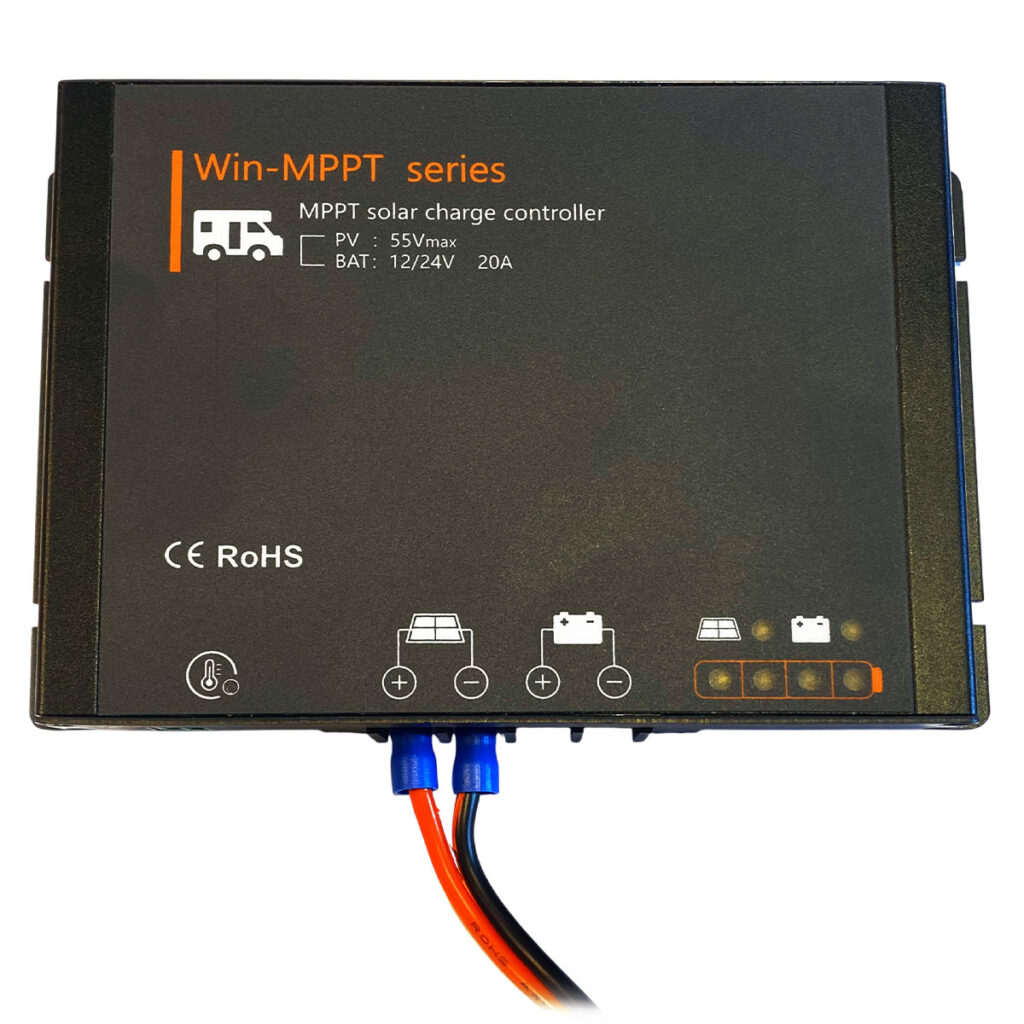

Charge controller: |
12 Volt |
Included in delivery: |

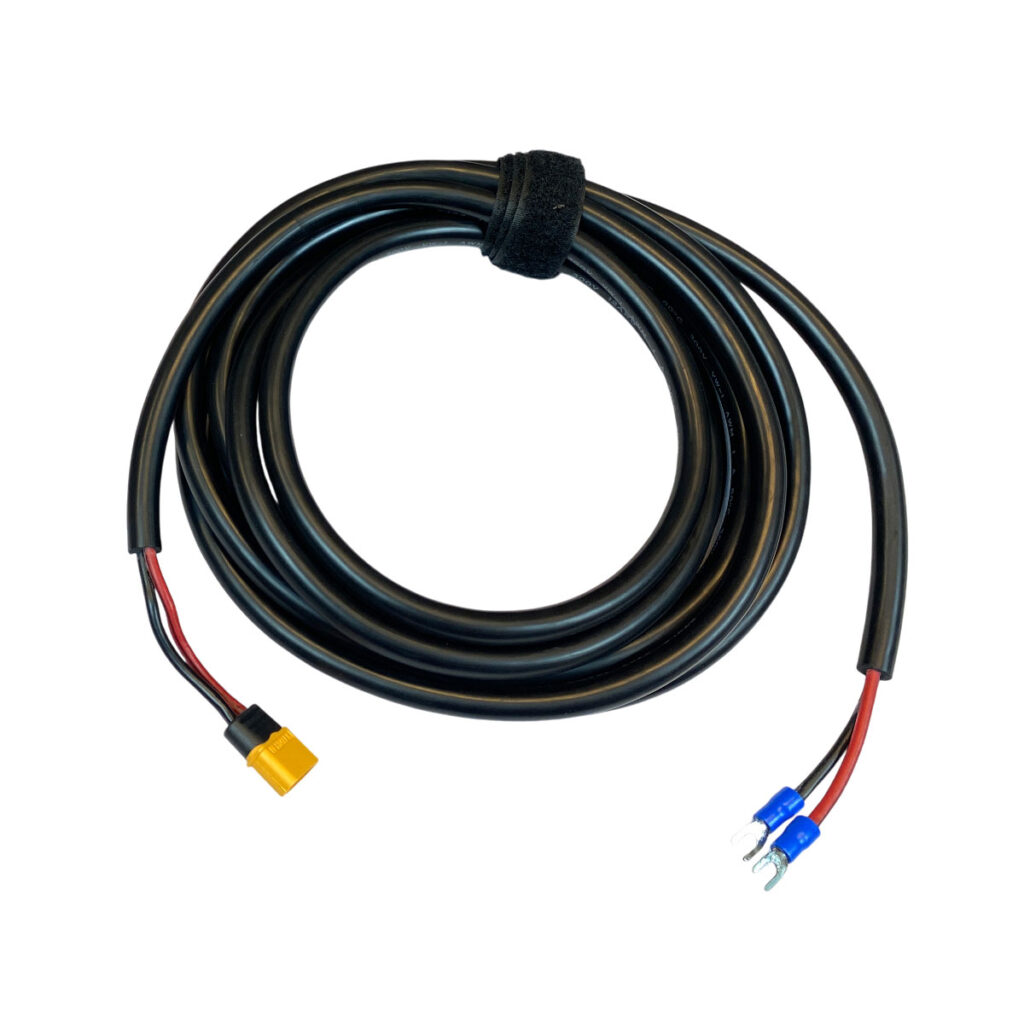

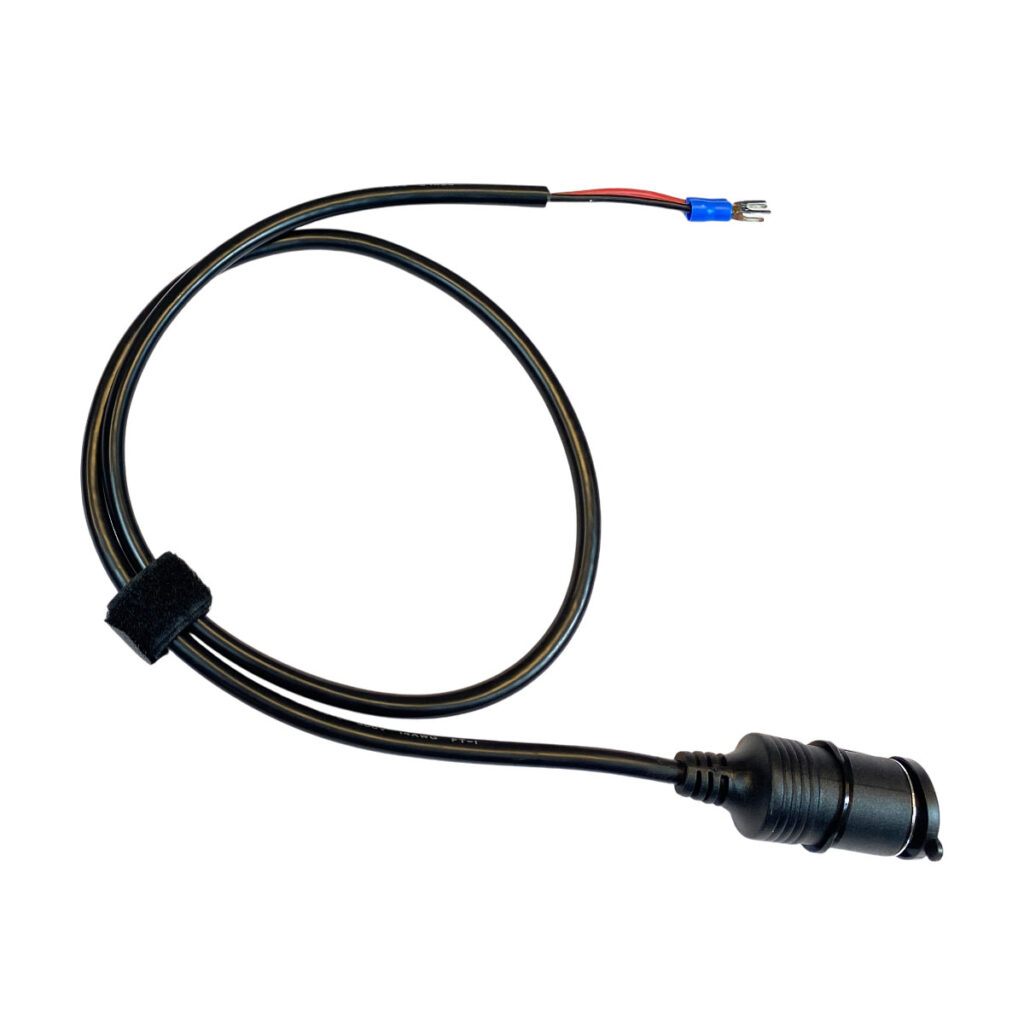

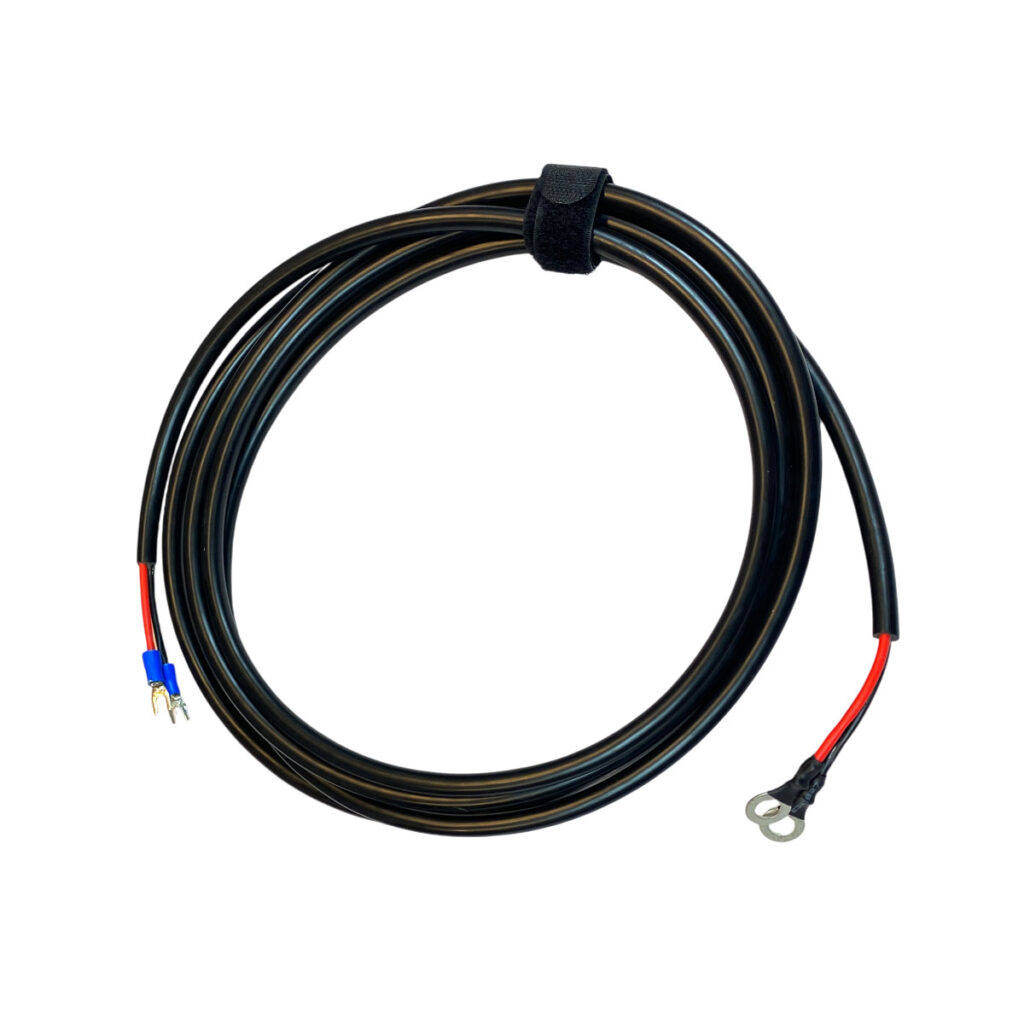

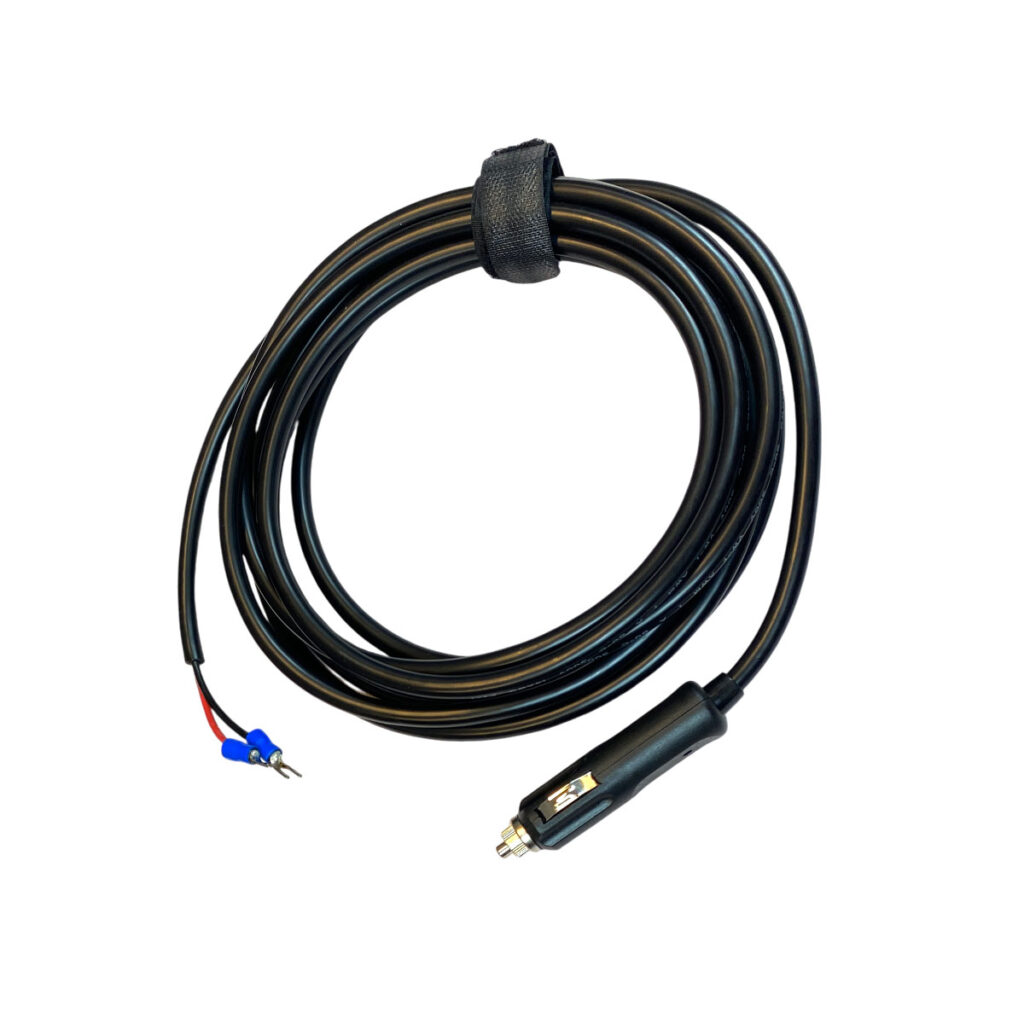

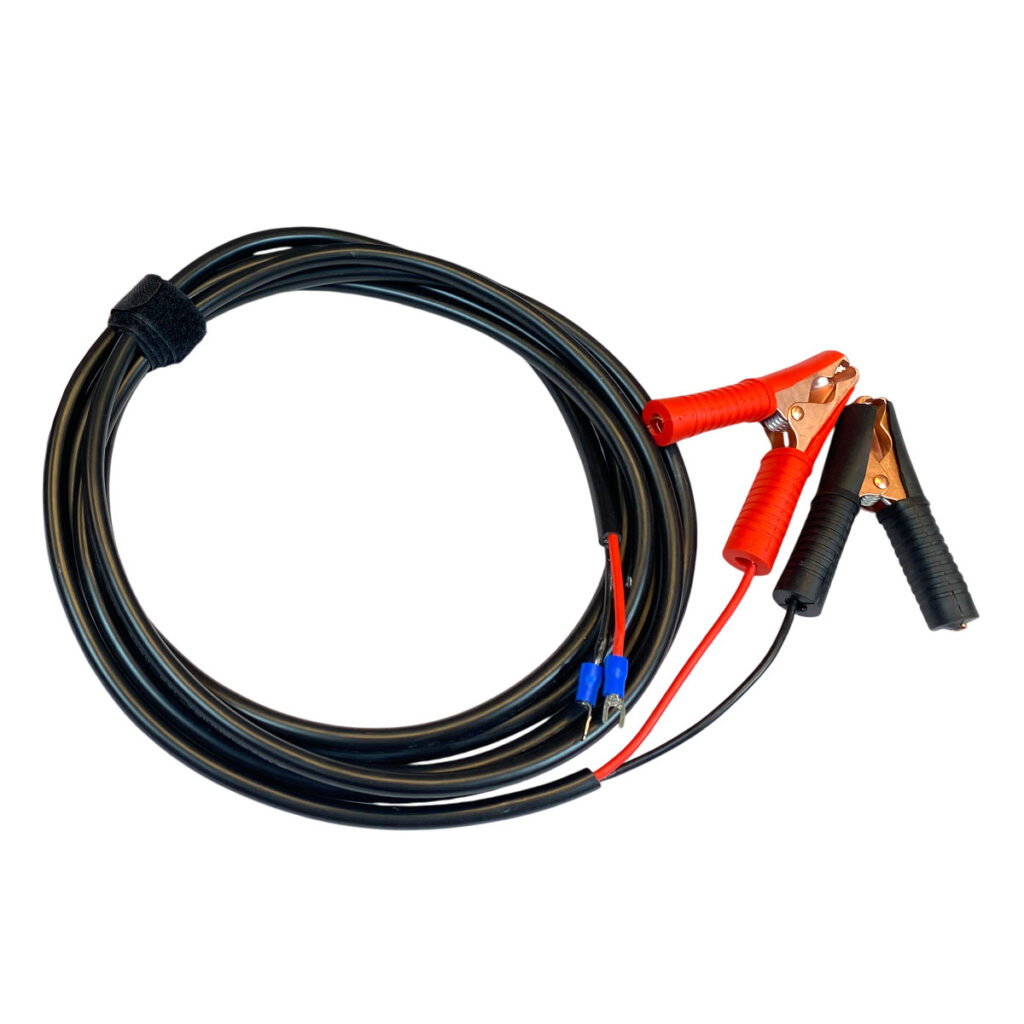

4m with alligator clips, 4m with 8mm eyelet terminal, 4m with XT60 plug, 4m with cigrette lighter, 1m with 12V plug |
